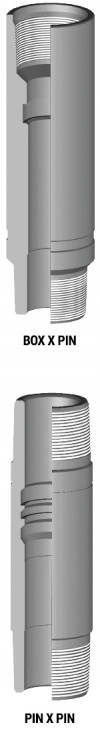

Profile Nipple
The Profile Nipple is designed to allow common slickline plugs and equipment to be placed successfully downhole. API and Premium threads can be cut on the nipples to reduce crossovers. Common profile and sizes are available.
Special Features
- ID profiles made per customer requirements
- API and Premium threads available
- “F”, “R”, “DX”, and “DXN” profiles available
- CRA trim available
Product Specifications
| Tubing Size (inches) |
Profile Size (inches) |
Profiles | Technical Data |
|---|---|---|---|
| 1.900 | 1.500 | DX DXN | - |
| 2-3/8 | 1.437 | F | - |
| 2-3/8 | 1.500 | F R DX DXN | - |
| 2-3/8 | 1.625 | F | - |
| 2-3/8 | 1.781 | F R | - |
| 2-3/8 | 1.812 | F R | - |
| 2-3/8 | 1.875 | F R DX DXN | - |
| 2-7/8 | 1.812 | F R | - |
| 2-7/8 | 1.875 | F R DX DXN | - |
| 2-7/8 | 2.130 | R | - |
| 2-7/8 | 2.187 | F R | - |
| 2-7/8 | 2.250 | F R | - |
| 2-7/8 | 2.312 | R DX DXN | - |
| 3-1/2 | 2.250 | F | - |
| 3-1/2 | 2.312 | DX | - |
| 3-1/2 | 2.562 | F R | - |
| 3-1/2 | 2.750 | F R DX DXN | - |
| 3-1/2 | 2.812 | F R DX DXN | - |
NOTE: All pricing includes standard Nitrile trim. Other sizes and connections available upon request.
OPTIONS: Available with high shear, also with ball and ball seat.
