Permanent Set Packers

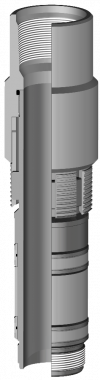

Anchor Latch Assembly
The Anchor Latch Seal Assembly is used when floating seals are not required. This assembly allows the tubing string to be in tension or compression. Upon set down the anchor latches into the packer and can be removed with eight to ten right-hand turns.
Product Specifications
| Packer Bore (inches) | Tool OD (inches) | Tool ID (inches) | Thread Connections (Box Up / Pin Down) |
Part Number | Technical Data |
|---|---|---|---|---|---|
| 1.750 | 2.440 | 1.19 | 1.900 NUE / - | 58217BS | |
| 2.500 | 3.470 | 1.91 | 2-3/8 EUE / 2.1875-10 STUB ACME | 58225 | |
| 2.688 | 3.470 | 1.94 | 2-3/8 EUE / 2.3125-8 STUB ACME | 58226 | |
| 3.000 | 3.968 | 2.375 | 2-7/8 EUE / 2.6875-8 STUB ACME | 58230 | |
| 3.250 | 4.250 | 2.406 | 2-7/8 EUE / 2.875-8 STUB ACME | 58232 | |
| 4.000 | 5.060 | 3.00 | 3-1/2 EUE / 3.625-8 STUB ACME | 58240 | |
| 4.750 | 5.810 | 3.50 | 4 | 58247 | |
| 5.000 | 5.810 | 4.00 | 4-1/2 | 58250 | |
| 5.250 | 6.310 | 4.25 | 4-1/2 LTC / 4.8750-8 STUB ACME | 58252 | |
| 6.000 | 7.500 | 4.75 | 5-1/2 LTC / 5.459-8 STUB ACME | 58260 | |
| 7.000 | 8.040 | 5.84 | 6-5/8 LTC / 6.500-8 STUB ACME | 58270 | |
| 9.000 | 10.060 | 8.00 | 9-5/8 LTC / 8.625-8 STUB ACME | 58290 |
