Permanent Set Packers
Locator Seal Assembly

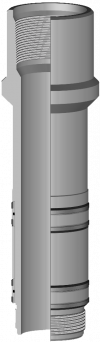

The Locator Seal Assembly is used in installations which require floating seals. Once landed, the seal locator prevents downward movement of the tubing while allowing the seal to move with tubing contraction.
Product Specifications
| Packer Bore (inches) | Tool OD (inches) | Tool ID (inches) | Thread Connections (Box Up / Pin Down) | Part Number | Tech Data |
|---|---|---|---|---|---|
| 1.750 | 2.200 | 1.19 | 1.900 NUE / 1.4375-10 STUB ACME | 58317BS-XBBA | |
| 2.500 | 3.060 | 1.91 | 2-3/8 EUE / 2.1875-10 STUB ACME | 58325 | |
| 2.688 | 3.130 | 1.94 | 2-3/8 EUE / 2.3125-8 STUB ACME | 58326 | |
| 3.000 | 3.875 | 2.37 | 2-7/8 EUE / 2.6875 STUB ACME | 58330 | |
| 3.250 | 3.750 | 2.41 | 2-7/8 EUE / 2.875-8 STUB ACME | 58332 | |
| 4.000 | 5.060 | 3.00 | 3-1/2 EUE / 3.625-8 STUB ACME | 58340 | |
| 4.750 | 5.750 | 3.50 | 4-1/2 EUE / 4.094 UNS | 58347 | |
| 5.250 | 5.875 | 4.25 | 5 LTC / 4.8750-8 STUB ACME | 58352 | |
| 6.000 | 7.50 | 4.75 | 5-1/2 LTC / 5.4590-8 STUB ACME | 58360 |
