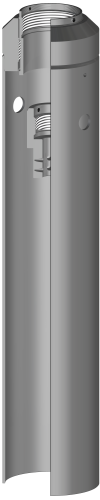

WLAK – for ASW Retrievable Bridge Plug
The Wireline Adapter Kit (WLAK) for the ASW Retrievable Bridge Plug is used to set the ASW Retrievable Bridge Plug on electric wireline or with a hydraulic setting assembly on tubing. This WLAK is designed to be used on a Baker E-4 wireline powder charge, a hydraulic setting assembly, or any setting assembly with the same configuration. The WLAK automatically disconnects from the AS Bridge Plug during packer setting to be easily retrieved and prepared to run again.
Product Specifications
| Size (inches) |
Tool OD (inches) |
Wireline Setting Tool Box Up | Part Number | Technical Data |
|---|---|---|---|---|
| 3-1/2 | 2.750 | BAKER E-4, #05 | 72335 | |
| 4-1/2 | 3.750 | BAKER E-4, #10 | 72345 | |
| 4-1/2 | 3.620 | BAKER E-4, #10 | 72341 | |
| 4-1/2 | 3.650 | BAKER E-4, #10 | 72344 | |
| 5-1/2 | 4.500 | BAKER E-4, #20 | 72355WLAK | |
| 6-5/8 | 5.440 | BAKER E-4, #20 | 72365 | |
| 7 | 5.875 | BAKER E-4, #20 | 72370 | |
| 8-5/8 - 14 | 6.000 | BAKER E-4, #20 | 72385 |
NOTE: Other sizes and connections available upon request.
