Anchors

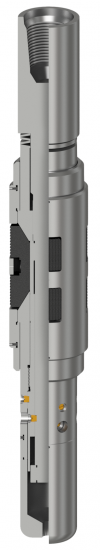

Set Down (SD) Anchor
The Set Down (SD) Anchor is used to anchor downhole equipment from rotating and/or moving up the hole. The anchor is designed to resist torque with a unique cone and slip design. The SD Anchor can be used in open hole applications.
Product Specifications
| Casing Size (inches) | Casing Weight (lbs/ft) | Recommended Hole Size (inches) | Tool OD (inches) | Tool Thread Connections (Box Up) | Part Number | Technical Data |
|---|---|---|---|---|---|---|
| 5-1/2 | 14.0 - 23.0 | 4.670 - 5.012 | 4.500 | 2-7/8 IF TOOL JOINT | 32155 | |
| 7 | 17.0 - 35.0 | 6.004 - 6.538 | 5.750 | 3-1/2 IF TOOL JOINT | 32170 | |
| 7-5/8 | 24.0 - 39.0 | 6.625 - 7.025 | 6.400 | 3-1/2 IF TOOL JOINT | 32175 | |
| 14 | 82.5 - 101.5 | 12.600 - 12.876 | 12.438 | 4-1/2 IF TOOL JOINT | 32114 |
