AS-5 Packer

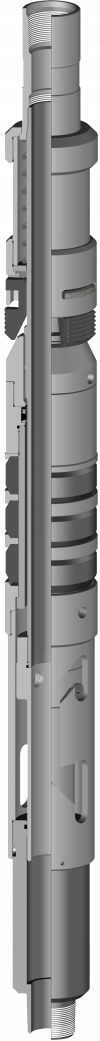

The AS-5 Packer is a compression set tool with a J-slot to control pack-off. It is run above other packers (such as the AS-III Packer) to selectively treat, produce or inject in multiple zone completions. It is also used to isolate casing hole perforations. This packer features a large by-pass area to prevent swabbing when running and retrieving. When releasing, the valve allows debris to be washed from the upper slips.
Special Features
- Large internal by-pass
- Mechanical slips vs. hydraulic buttons
- Additional J-slot arrangements available
Related Products
Product Specifications
| Casing Size (inches) | Casing Weight (lbs/ft) | Recommended Hole Size (inches) | Tool OD (inches) | Tool ID (inches) | Thread Connections (Box Up / Pin Down) |
Part Number | Technical Data |
|---|---|---|---|---|---|---|---|
| 4-1/2 | 9.5 - 13.5 | 3.920 - 4.090 | 3.750 | 1.94 | 2-3/8 EUE | 60845 | |
| 5-1/2 | 14.0 - 20.0 | 4.778 - 5.012 | 4.625 | 2.00 | 2-3/8 EUE | 60855 | |
| 5-1/2 | 14.0 - 20.0 | 4.778 - 5.012 | 4.625 | 2.38 | 2-7/8 EUE | 60856 | |
| 5-1/2 | 20.0 - 23.0 | 4.670 - 4.778 | 4.500 | 2.00 | 2-3/8 EUE | 60857 | |
| 5-1/2 | 20.0 - 23.0 | 4.670 - 4.778 | 4.500 | 2.38 | 2-7/8 EUE | 60859 | |
| 7 | 17.0 - 26.0 | 6.276 - 6.538 | 6.000 | 2.50 | 2-7/8 EUE | 60872 | |
| 7 | 17.0 - 26.0 | 6.276 - 6.538 | 6.000 | 3.00 | 3-1/2 EUE | 60874 | |
| 7 | 26.0 - 32.0 | 6.094 - 6.276 | 5.875 | 2.50 | 2-7/8 EUE | 60870 |
All items include standard Nitrile trim. Carbide, other sizes, connections, and J-slot configurations are available upon request.
